Description
This is a model from the G-Shock Mudmaster Series, designed for use in extreme environments scattered with rubble, dirt and debris, and uses carbon materials.
The use of high rigidity carbon on the case keeps damage and deformation at bay, and ensures a high level of airtightness and shock resistance. This model also features a filter that protects against the invasion of mud, a stainless steel panel back, and a back cover made of shock-resistant fine resin embedded with glass fibers, giving it a high level of resistance to dust and mud. The bezel also uses three layers of fine resin with carbon fiber inserts and is designed to resemble a portable gasoline can that could be found on off-road vehicles.
Function-wise, this model comes with compass, altimeter/barometer, temperature reader and pedometer. In addition to being able to easily correct the time using the dedicated CASIO WATCHES app, there are lots of other useful features including the Mission Log feature, which automatically records in the app altitude data obtained from the watch and route data obtained by your smartphone.
This is a toughness watch that supports you in taking quick decisions and accurate actions.
Case size (L× W× H)
icon-question
55.4 × 51.3 × 19.4 mm
Weight
icon-question
92 g
Case and bezel material
Carbon / Resin
Band
Resin Band
Construction
Shock Resistant
Mud Resistant
Carbon Core Guard structure
Water resistance
200-meter water resistance
Time adjustment
Bluetooth: Connects to a smartphone and automatically adjusts the time
Power supply and battery life
Approx. battery life: 2 years on CR2025
Sensor feature
Step count using a 3-axis acceleration sensor: 0 to 999,999 step count display range
Power Saving: Auto sensor sleep state entry after fixed period of non-activity
Altimeter
Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Hand indication graph of altitude differential
Manual memory measurements (up to 14 records, each including altitude, date, time)
Auto log data (High/low altitudes, cumulative ascent and descent)
Others: Relative altitude readings (±100 m /±1000 m), selectable measurement interval: 5 seconds or 2 minutes (1 second for first 3 minutes only)
*Changeover between meters (m) and feet (ft)
Barometer
Measuring range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Measuring unit: 1 hPa (0.05 inHg)
Hand indication of pressure differential (±10 hPa)
Atmospheric pressure tendency graph (last 20 hours or last 56 hours)
Barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure)
The atmospheric pressure tendency graph can show the last 20 minutes or last 56 minutes of measurements.
The hand indication of pressure differential shows values in units of ±0.1 hPa.
*Changeover between hPa and inHg
Digital compass
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Hand indication of north
Magnetic declination correction
Direction calibration (2-point calibration, figure eight calibration, auto calibration)
Thermometer
Measuring range: -10 to 60℃ (14 to 140℉)
Measuring unit: 0.1℃ (0.2℉)
*Changeover between Celsius (℃) and Fahrenheit (℉)
Smartphone Link/App Connectivity Features
Smartphone Link feature
Mobile link (Wireless linking using Bluetooth®)
Apps
CASIO WATCHES
App connectivity feature
Auto time adjustment
Easy watch setting
Approximately 300 world time cities
Life log data
Mission log
Location Indicator
Location Memory
Mode/Display switching customization
Auto altitude correction
Phone finder
Exterior
Glass
Mineral Glass
Spherical Glass
Other
Neobrite
Watch Features
World time
World time
38 time zones (38 cities + coordinated universal time), daylight saving on/off, Home city/World time city swapping
Sunrise/sunset display
Sunrise, sunset time display
Sunrise time and sunset time for specific date
Stopwatch
1/100-second stopwatch
00'00''00~59'59''99 (for the first 60 minutes)
1:00'00~23:59'59 (after 60 minutes)
Measuring unit:
1/100 second (for the first 60 minutes)
1 second (after 60 minutes)
Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer
Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal
5 daily alarms
Hourly time signal
Light

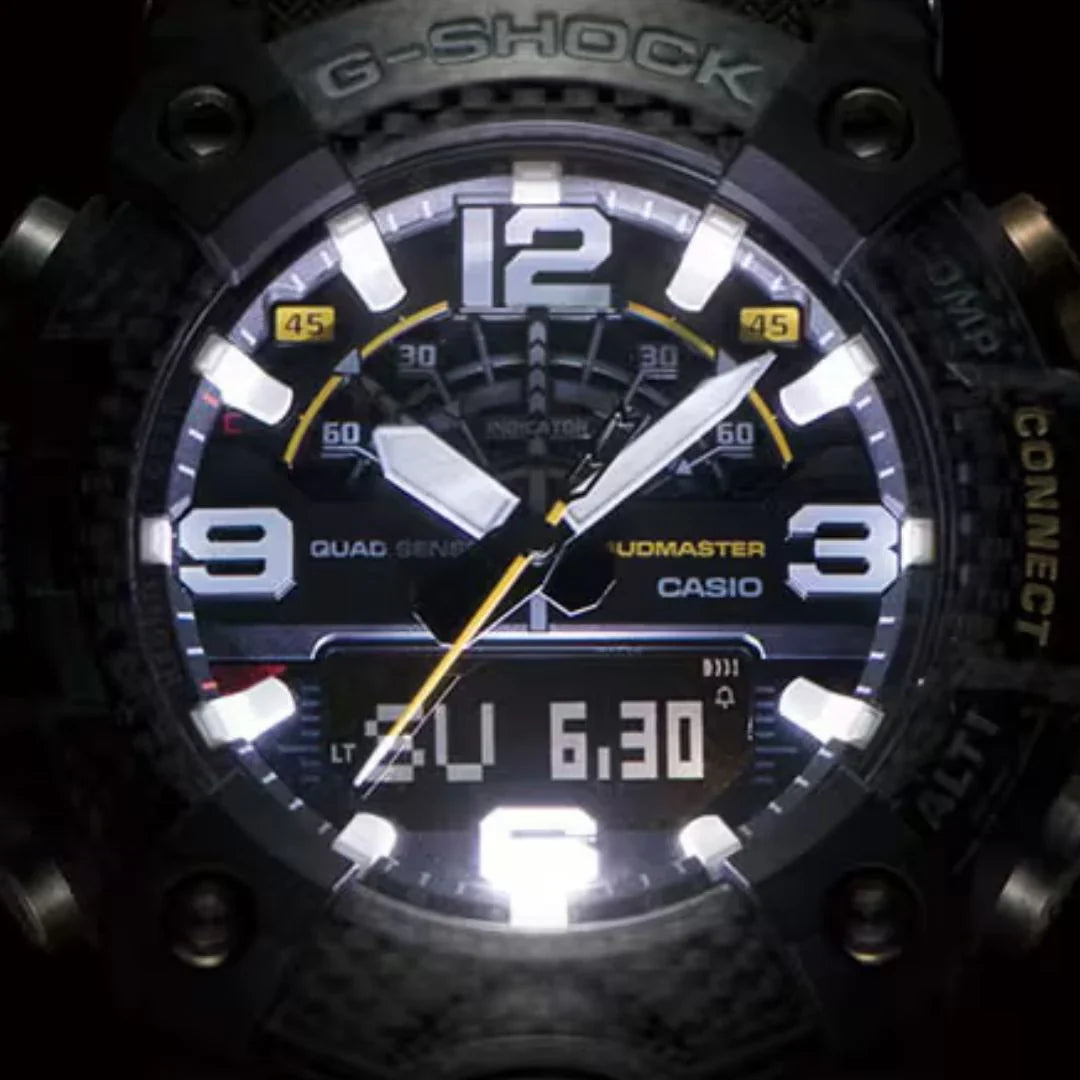

Double LED light
LED light for the face (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
LED backlight for the digital display (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
Light color
LED:White
Calendar
Full auto-calendar (to year 2099)
Mute feature
Button operation tone on/off
Accuracy
Accuracy: ±15 seconds per month (with no mobile link function)
Other features
12/24-hour format
Hand shift feature
Regular timekeeping:
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second)
Digital: Hour, minute, second, am/pm, month, date, day
